INMACOM MIS Platform Overview
Welcome to the INMACOM MIS (Management Information System) V2.0 developer documentation and user portal. This site serves as the authoritative source of truth detailing the technical implementation, architecture, databases, routing, APIs, and business workflows of the INMACOM platform.
System Overview
The Incomati Water Resources Management System (INMACOM MIS) is a transboundary water-management portal. It is designed to track water stations, real-time measurements, compliance with the Incomati and Maputo Agreement (IIMA), hazard status, disaster incidents, and document flows across three tri-basin nations:
- 🇲🇿 Mozambique
- 🇿🇦 South Africa
- 🇸🇿 Eswatini (Swaziland)
The platform provides a consolidated dashboard for environmental managers, administrators, and data entry clerks to monitor basin health, log local alerts, and report compliance metrics back to the tri-nation Tripartite Permanent Technical Committee (TPTC).
┌─────────────────────────────────────────────────────────────┐
│ INMACOM MIS │
│ Transboundary Basin Management Portal │
└──────────────────────────────┬──────────────────────────────┘
│
┌────────────────────────┼────────────────────────┐
▼ ▼ ▼
🇿🇦 South Africa 🇸🇿 Eswatini 🇲🇿 Mozambique
(Upper Incomati) (Middle Incomati) (Lower Incomati)Technical Stack
The application is structured as a modern full-stack monolithic web application using the following technologies:
| Layer | Technology | Version / Description |
|---|---|---|
| Backend | Laravel 13 (PHP 8.3) | Core routing, MVC architecture, domain models, validations. |
| Frontend | React 18 + TypeScript | Component-driven, dynamic UI. |
| Monolith Bridge | Inertia.js 2 | Server-driven routing with a single-page app (SPA) user experience. |
| Database | PostgreSQL | Relational transactional storage for stations, history, and audits. |
| Authentication | Firebase Authentication | Email/password + Google Auth with Laravel session synchronization. |
| Styling | Mantine v8 + Tailwind v3 | Premium, clean layout system utilizing global styling tokens. |
| Mapping | Leaflet + React Leaflet | GIS-driven mapping showing basin boundaries, station locations, and status. |
Treaty & Compliance Context
The core business logic of INMACOM MIS revolves around the Incomati and Maputo Agreement (IIMA), specifically monitoring:
- Instream Flow Requirements (Eflow): Ensuring that river flow rates at critical cross-border monitoring stations do not drop below the treaty-mandated minimum thresholds (expressed in m³/s or million m³/annum).
- Water Allocations: Monitoring that total abstracted volumes by each country do not exceed the historical allocations designated for each user category.
- Water Quality Standards: Tracking parameters like dissolved oxygen (DO), pH, electrical conductivity (EC), temperature, and chemical concentrations to prevent ecological degradation.
- Disaster and Incident Response: Instantly notifying downstream countries (e.g. South Africa/Eswatini notifying Mozambique) in the event of severe floods, dam spillages, or chemical spills.
[!NOTE] The Incomati river basin is highly vulnerable. Any water abstraction upstream directly impacts downstream users, making this real-time monitoring and reporting system critical for environmental compliance and international treaty enforcement.
Quick Navigation
Ready to start developing? Navigate through the sections using the sidebar:
- Getting Started & Onboarding: Configure and seed the development environment.

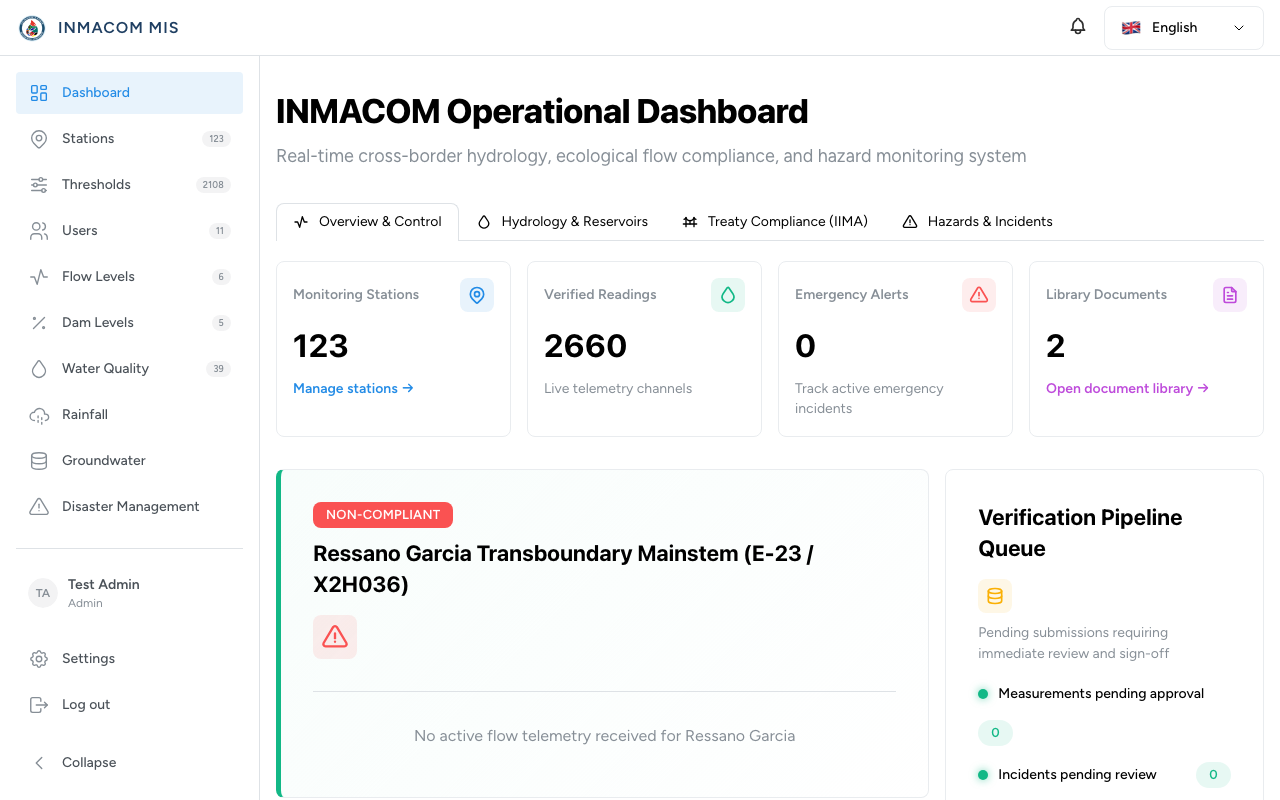

- Hands-on User Guide: Step-by-step user manual with screenshots of the active system.
- System Architecture: Discover how our database schemas, authentication flow, and backend/frontend layers integrate.
- Feature Modules: Detailed deep-dive into stations, GIS modules, compliance triggers, and incident reporting.
